ST1220 RAPID BIKE QUICK SHIFTER SENSOR - Not Model Specific

Electronic quick shifter

Digitally adjustable pressure/tension strain gauge/load cell quick shifter with automatic kill-time feature.

Features
- For either push or pull linkages
- Fixed or automatic kill-time
- No movable parts
- Adjustable preload
- Protection: IP66
- Sensor’s measures: Length 45mm – Diameter 14mm

Important Note: For the initial set up of the quick shifter kit, it is required to be connected to Rapid Bike software via Rapid Bike USB cable ( Same cable that came with your RB EVO or Racing kit ) . If the initial set up is not performed correctly, the shifter will no function correctly.  NO WARRANTY ON LOAD CELL, 1 YEAR WARRANTY ONLY APPLIES TO THE WIRING AND THE CONTROLLER MODULE.

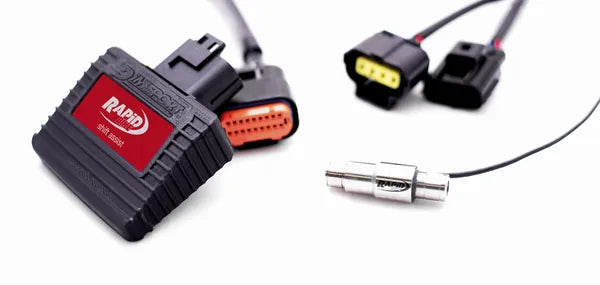

Electronic quick shifter kit

K27-SW-GEAR: Strain Gauge/Loadcell quick-shifter kit. This kit is NOT a stand-alone system and it must be added to your existing Rapid Bike EVO or Racing fuel management system. It connects directly to the Rapid Bike wiring harness. The load cell can be programmed for push OR pull. A generic shift rod is usually included with the kit but not always since not all bikes require a rod. In the event of the rod being included in the kit will be a generic size and it is the owner's responsibility to perform correct measurements and cut it and secure it properly. We include a  rod based on factory rearsets. PRICE DOES NOT INCLUDE AN ADDITIONAL SHIFT ROD WHICH SOME BIKES REQUIRE AND ALSO THE ADDITIONAL HEIM JOINT WHICH ALSO IS NEEDED FOR DUCATI PANIGALE 899-959-1199-1299 MODELS.
